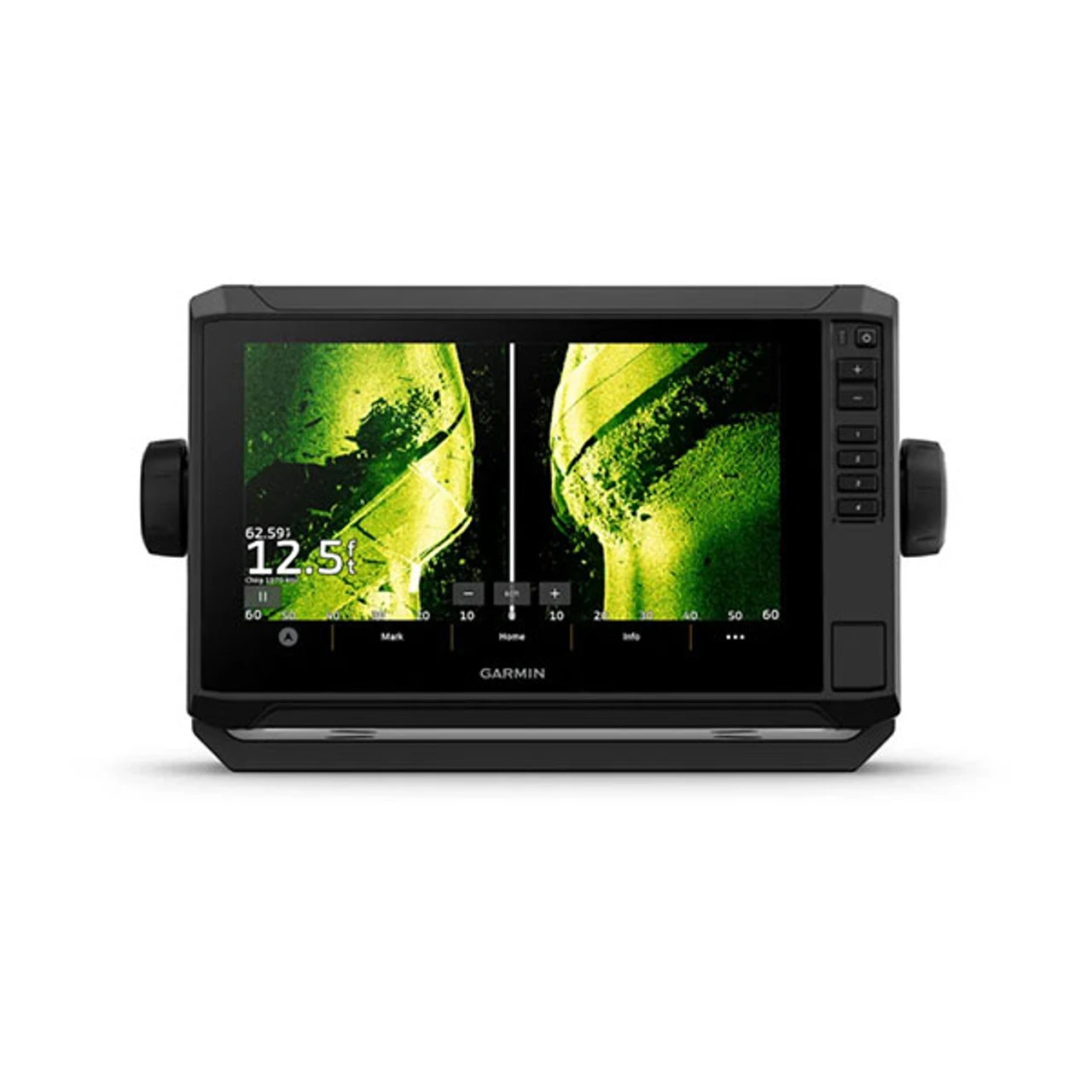

ECHOMAP UHD2 93sv 9″ Charplotter W/o Transducer By Garmin

Original price was: $365.00.Current price is: $96.99.

Secure Shopping Starts with Safe Payments

Sustainable materials, for a better tomorrow.

Quality You Can Count On

Uncompromising quality, every time.

Product Description

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

Features:

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.
Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü^™ and SideVü^™ sonars.
Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.
If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.
Want our best in mapping? Who doesn’t? Select chartplotters come with Garmin Navionics+^™ mapping.

General:

DIMENSION	10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8.0 cm)
TOUCHSCREEN	Yes
INPUT	Touchscreen with Keyed Assist
DISPLAY SIZE	7.8″ x 4.5″, 9.0″ (19.8 x 11.5 cm, 22.9 cm)
DISPLAY RESOLUTION	1024 x 600 pixels
DISPLAY TYPE	WSVGA, TN
WATERPROOF	IPX7
MOUNTING OPTIONS	Bail or Flush

Maps & Memory:

ACCEPTS DATA CARDS	1 microSD™ card; 32 GB maximum size
WAYPOINTS	5,000
TRACK POINTS	50,000
TRACKS	50 saved tracks
NAVIGATION ROUTES	100

Sensors:

HAS BUILT-IN RECEIVER	Yes
RECEIVER	10 Hz
NMEA 2000 COMPATIBLE	Yes
GPS	Yes
GLONASS	Yes
GALILEO	Yes
BEIDOU	Yes
SUPPORTS WAAS	Yes
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS	Yes

Built-In Maps:

BUILT-IN AUTO GUIDANCE+	Yes (downloadable via ActiveCaptain app)
GARMIN NAVIONICS+ INLAND & COASTAL	Yes (see Additional)
GARMIN NAVIONICS+ (COASTAL)	Yes (see Additional)
GARMIN NAVIONICS+ (INLAND)	Yes (see Additional)
TIDE TABLES	Yes (see Additional)

Optional Map Support:

GARMIN NAVIONICS+	Yes
GARMIN NAVIONICS VISION	Yes
TOPO	Yes
STANDARD MAPPING	Yes
GARMIN QUICKDRAW CONTOURS	Yes

Chartplotter Features:

AIS	Yes
DSC	Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS	Yes
ACTIVECAPTAIN® COMPATIBLE	Yes
SAILING FEATURES	Yes

Sonar Features & Specifications:

DISPLAYS SONAR	Yes
POWER OUTPUT	500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)	Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ	Built-in 260/455/800/1000/1200 kHz
SIDEVÜ	Built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR	Yes
LIVESCOPE	Yes

Connections:

NMEA 2000 PORTS	Yes
GARMIN MARINE NETWORK PORTS	1
12-PIN TRANSDUCER PORTS	1
BLUETOOTH® PAIRING	Yes
ANT+ (CONNECTIVITY)	Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION)	Yes

Electrical Features:

POWER OUTPUT	9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC	1.72 A
MAXIMUM CURRENT DRAW AT 12 VDC	3.5 A
MAXIMUM POWER USAGE AT 10 VDC	20.7W

Additional:

ADDITIONAL	Garmin Navionics+ (inland and coastal): 95sv Canada, Australia and New Zealand Garmin Navionics+ (coastal): 94sv U.S. coastal, 95sv UK/Ireland Garmin Navionics+ (inland): 93sv U.S. lakes Tide tables: 93sv, 94sv, 95sv

With Transducer:
