Product Description

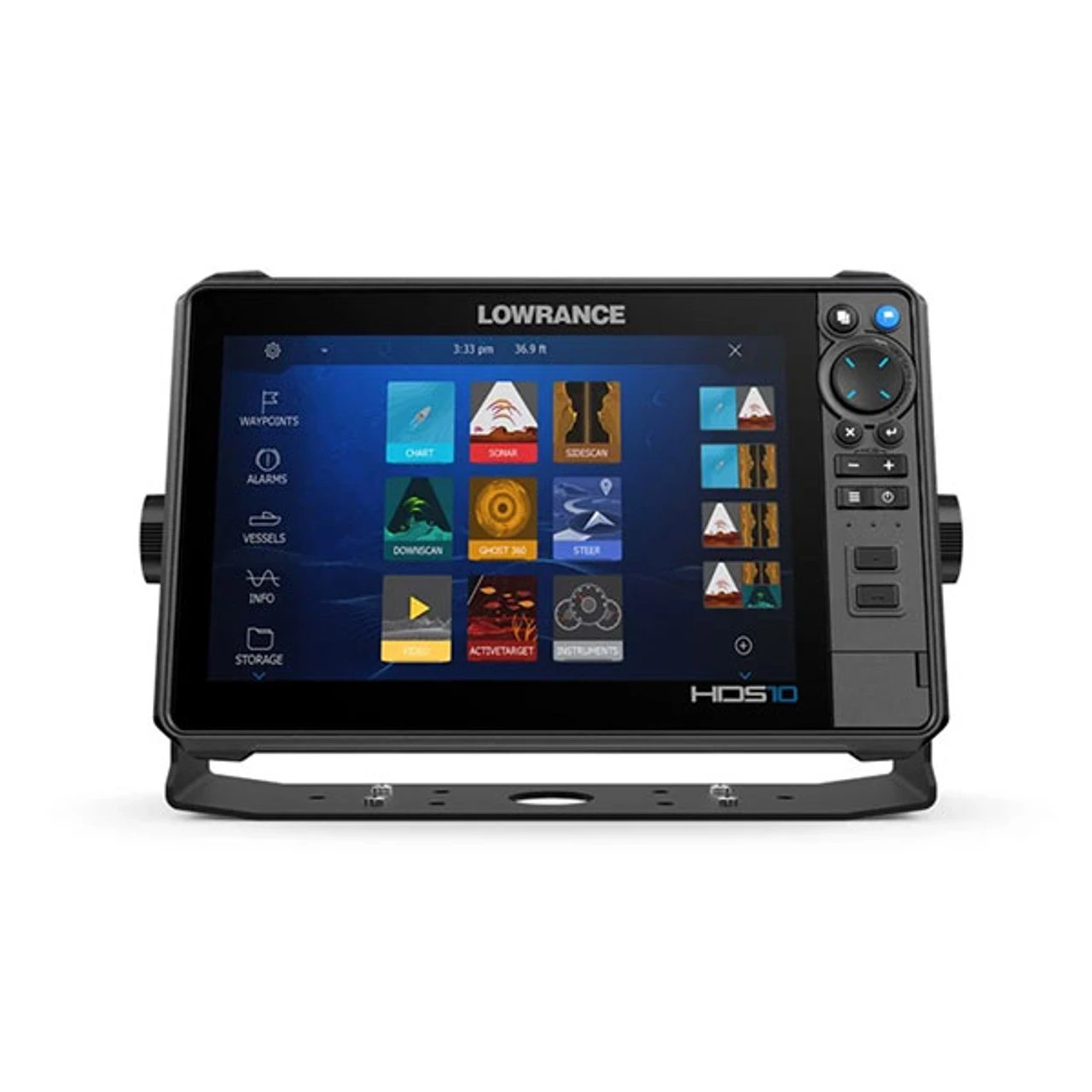

See more and catch more with the new HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with new, high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging™ HD. Quickly find fishing areas with the latest and most detailed C-MAP® charts and get full fishing system networking with expanded boat control from bow to stern.

Features:

SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
New! High-resolution ActiveTarget® 2 Live Sonar ready
FishReveal™ with new SideScan view, as well as Downscan*
Available in 9, 10, 12 and 16-inch display size
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
Real-time mapping available with C-MAP® Genesis Live.
Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
Large programmable keys for 10, 12 and 16-inch sizes
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

*SidescanFishReveal requires S3100 module and a compatible transducer*

Specs:

Display:

Backlight Color: Pure White LED
Display Resolution: 1280×720
Screen Brightness: >1200 Nits
Viewing Angles: 80° top/bottom, 80° left/right

Connectivity:

Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet Ports: 1x 100 Mbit, 6 max MFD’s on a network
Connectivity Wi Fi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
N2K PG Ns: Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183 Sentences supported: TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
NMEA 2000 Connectivity: 1x Micro-C
PC Connectivity: None
SD Card Storage: 2 micro SD cards up to 32GB
Video: Output: NoInput: Composite video RCA – singlechannel via optional adaptor

Cartography:

Charts supported: C-MAP RevealC-MAP DiscoverC-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners

Autopilot:

Manouevres Turn Patterns: CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
Steering Modes: CourseHeadingWaypointPower Steer

Electrical:

Power Consumption max: 2.9A @ 13.8VDC with Full Backlight, Sonar on
Power Consumption min: 2.0A @ 13VDC withwith Full Backlight, Sonar on
Power Consumption typical: 2.0A @ 13VDC withwith Full Backlight, Sonar on
Recommended Fuse Rating: 3A
Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

Humidity: IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Shock Vibration: 100,000 cycles of 20 G
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
Waterproofrating: IPX7 with card door closed

GPS:

Correction: DGPS, WAAS
GPS Receiver Channels: 16
Position Accuracy: 20m RMS
Time to First Fix: 30s
Update rate: 10 Hz

MFD:

AIS: AIS Chart and Radar overlay. Target vessel details.
Autopilot: Outboard PilotNAC-1NAC-2Ghost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included: C-MAP Discover OnBoard (AMER models)C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
Digital Switching: CzoneNaviop
GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage: 8.0 GB Internal
Multimedia: SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Sonar Compatibility: Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanActive Imaging HD DownScanActive Imaging HD SideScanCompatible with:ActiveTargetActiveTarget2S3100 SonarHubStructureScanStructureScanHDStructureScan3DLiveSight (requires PSI-1 module)
Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Weather: SiriusXM via WM-3 (USA only)SiriusXM via WM-4 (USA only)

Physical:

Compass Safe: 65 cm (2.1 ft)
Dimensions W x H x D: 11.06″ (294.61 mm) x 7.6″ (193.15 mm) x 3.3″ (82.57 mm)
Mounting Type: Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
Weight: 3.66lb (1.66kg)

Other:

Interface: Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light2 – User Programmable Quick Access Keys
Warranty: 2 Year + 3 additional years ofupgrade optionsTotaling 5 years
