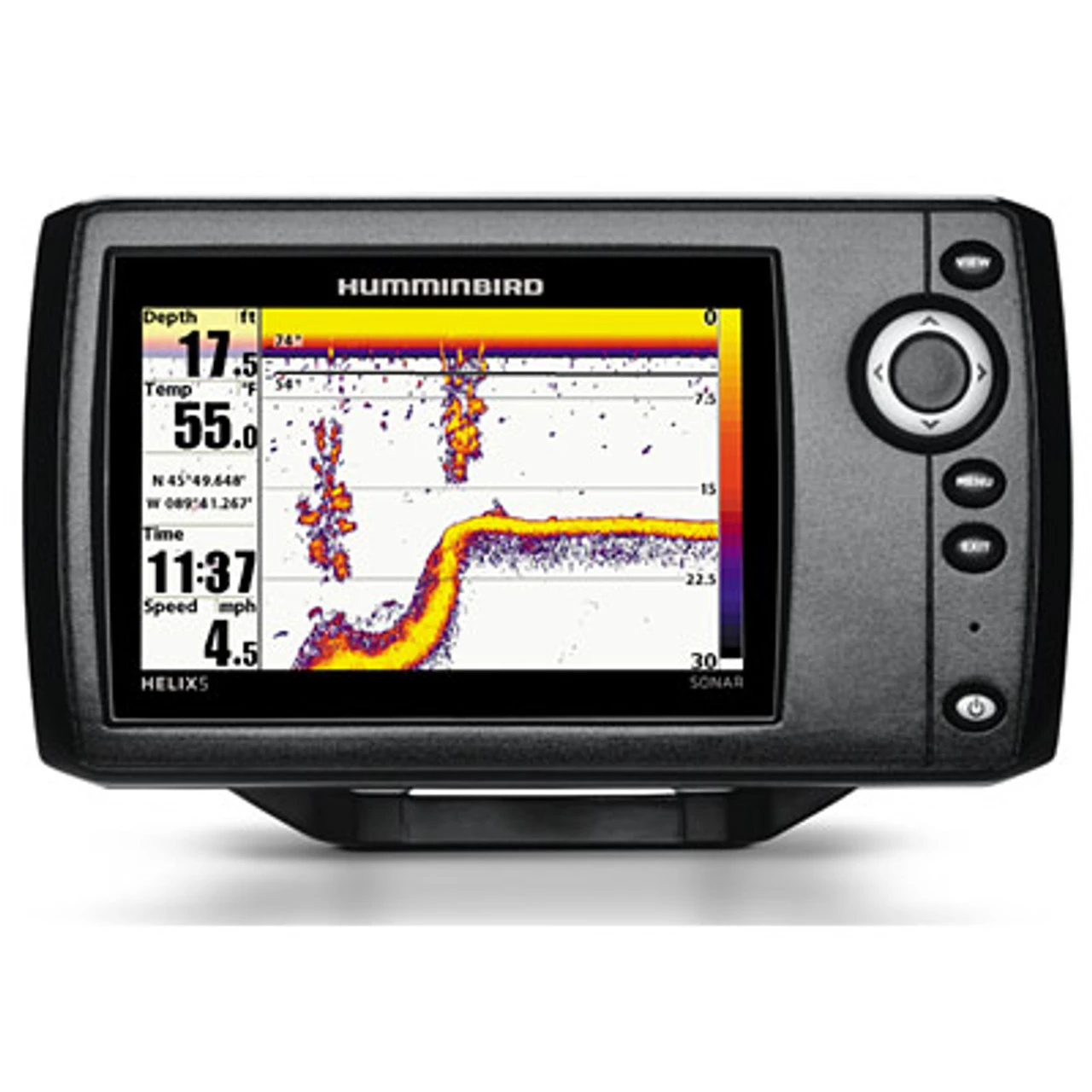

HELIX 5 Sonar G2 Unit By Humminbird

Product Description

Get a $40 Prepaid Mastercard when you purchase this unit! Via mfg rebate – click here for details.



The HELIX 5 Sonar G2 with our new user interface and operating system, features ​a brilliant 800H x 480V, 5″ 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.Sonar only; does not include GPS.

FEATURES

• SWITCHFIRE – Take command of how your sonar returns appear with our Clear and Max Modes.
• DUALBEAM PLUS SONAR – Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• UPGRADEABLE SOFTWARE – Access software updates to enhance the performance of your Humminbird unit through their My Humminbird section of the Humminbird website.
• Split Screen Zoom
• Split Screen Bottom Lock
• Large Digits View
• Wide/Narrow Cone Split Screen
• Custom View Selections
• Custom Digital Readout
• Temperature Alarm
• Freeze Frame
• Instant Image Update
• Selective Fish ID+
• Real-time Sonar
• X-Press Menu System
• Standard Transducer Included: XNT 9 20 T

SPECS

• Display Size – Diagonal: 5″
• Display Pixels: 800H X 480V
• Display Type: Color TFT
• Display Colors: 16-bit
• Sonar Standard: DualBeam PLUS
• Standard Sonar Coverage: 20°, 60° @ -10db
• Standard Sonar Frequency: 200/83 kHz
• Target Separation: 2.5″
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 1500 ft
• Temperature: Built-In, Transducer
• Speed: Optional
• Backlight: LED
• Unit Size – Gimbal Mount:7.55″W x 4.64″H x 3.3″D

Humminbird Part Number:
HELIX 5 Sonar G2 Unit/No GPS (410190-1)
