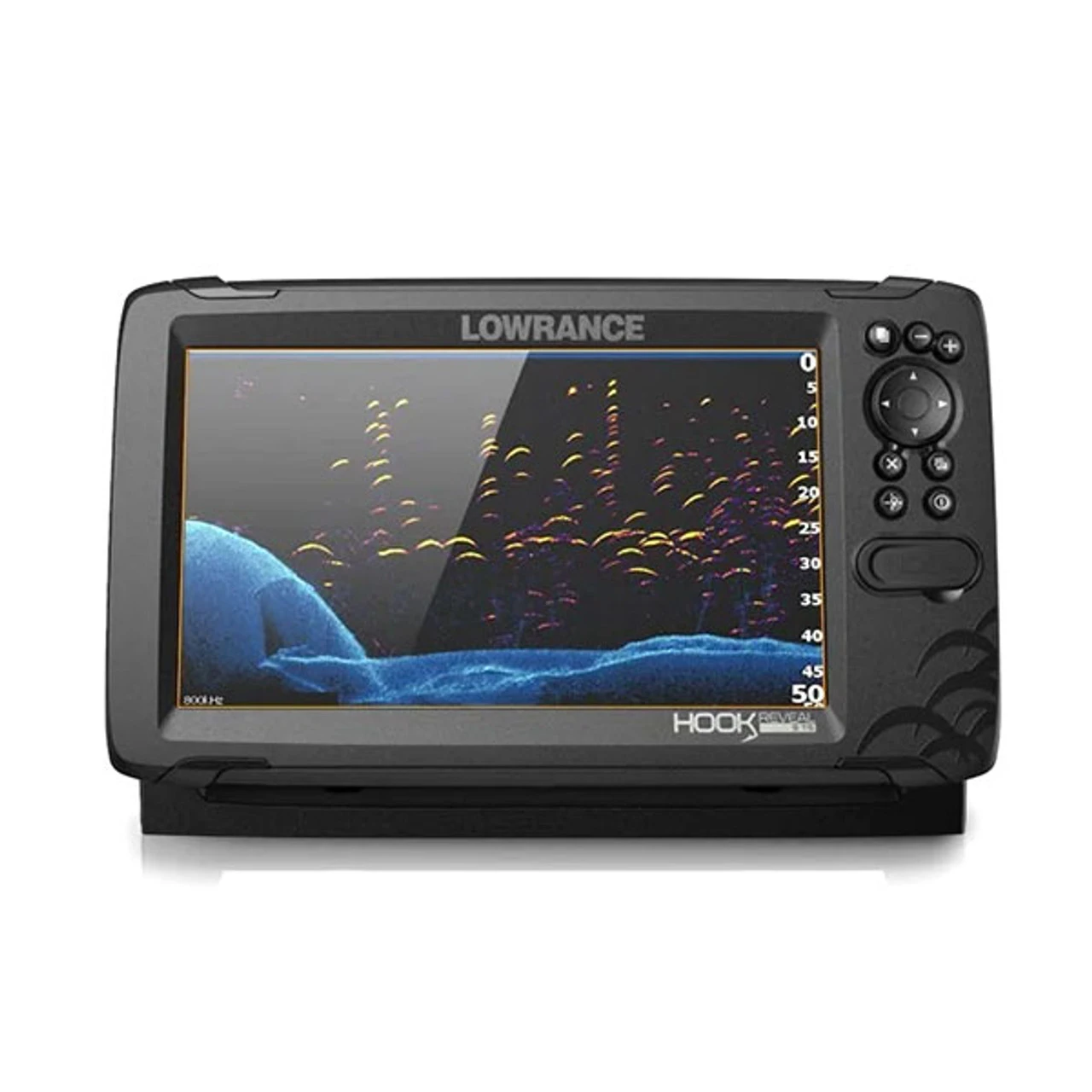

HOOK Reveal 9 TripleShot W/ C-Map Contour+ Card By Lowrance

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with included US/Canada C-MAP® Contour™+ mapping or map uncharted water – in real time – with Genesis Live.



• FishReveal™
• Genesis Live Real-Time Mapping
• Autotuning sonar
• Double the sonar coverage of other fishfinders
• Tripleshot™ transducer with High CHIRP, SideScan and DownScan Imaging™
• Includes C-MAP® Contour+ inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000+ U.S. Lakes and 9,400+ lakes in Canada
• SolarMAX™ Display
• New fish-finding color palettes
• Optimized keypad with one-touch access to key features
• Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
• microSD card slot
• Easy front-dash or gimbal-bracket mount

Specs:

• Backlight Color:  Pure White LED
• Display Resolution: 800 x 480
• Screen Brightness:  >1000 nits
• Viewing Angles:   80° top/bottom, 85° left/right

Connectivity:

• SD Card Storange:  Micro SD Card (32 gb Max)

Cartography:

• Charts supported:  C-MAP Lake Insight HD C-MAP Insight Pro C-MAP (MAX N, MAX N+) C-MAP Genesis Genesis Live C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners (No Photo/Satellite Overlay)

Approvals:

• FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Electrical:

• Power Consumption max:  1.50A @ 13VDC with backlight on full
• Power Consumption min:  1.50A @ 13VDC with backlight on full
• Power Consumption typical:  1.50A @ 13VDC with backlight on full
• Recommended Fuse Rating:  5A
• Supply Voltage:  12v DC (10.8-17VDC)

Environment:

• Humidity:  60°C, 95% relative humidity (RH) for 18 hours
• Operating Temperature Range:  5°F to 131°F (-15°C to 55°C )
• Shock Vibration:  100,000 cycles of 20 G
• Storage Temperature Range:  4°F to 140°F (-20°C to 60°C )
• Waterproofrating:  IPX7 with card door closed

GPS:

• Correction:  DGPS, WAAS
• Time to First Fix:  30s

MFD:

• Cartography included:  C-Map US Inland Charting. C-MAP Contour+ card included
• GPS:  1 Hz GPS GLONASS WAAS EGNOS MSAS
• Sonar Compatibility:  Integrated: CHIRP Broadband DownScan SideScan
• Waypoints, Routes, Tracks:  3000 Waypoints 100 Routes 100 Trails

Physical:

• Compass Safe:  12″ (300mm)
• Dimensions W x H x D:  10.92″ (277.3 mm) x 6.90 (175.2 mm) x 4.42″ (112.3 mm)
• Mounting Type:  Gimbal Bracket Front Dash Flush Mount
• Weight:  1.90 lb (0.86 kg)

Other:

• Interface:   Keypad: 8-way directional keypad Zoom +/- Exit Enter/Menu Waypoint/Cursor Power/Light Pages
• Warranty Period:  1 Year + 4 additional years of upgrade options Totaling 5 years
