Product Description

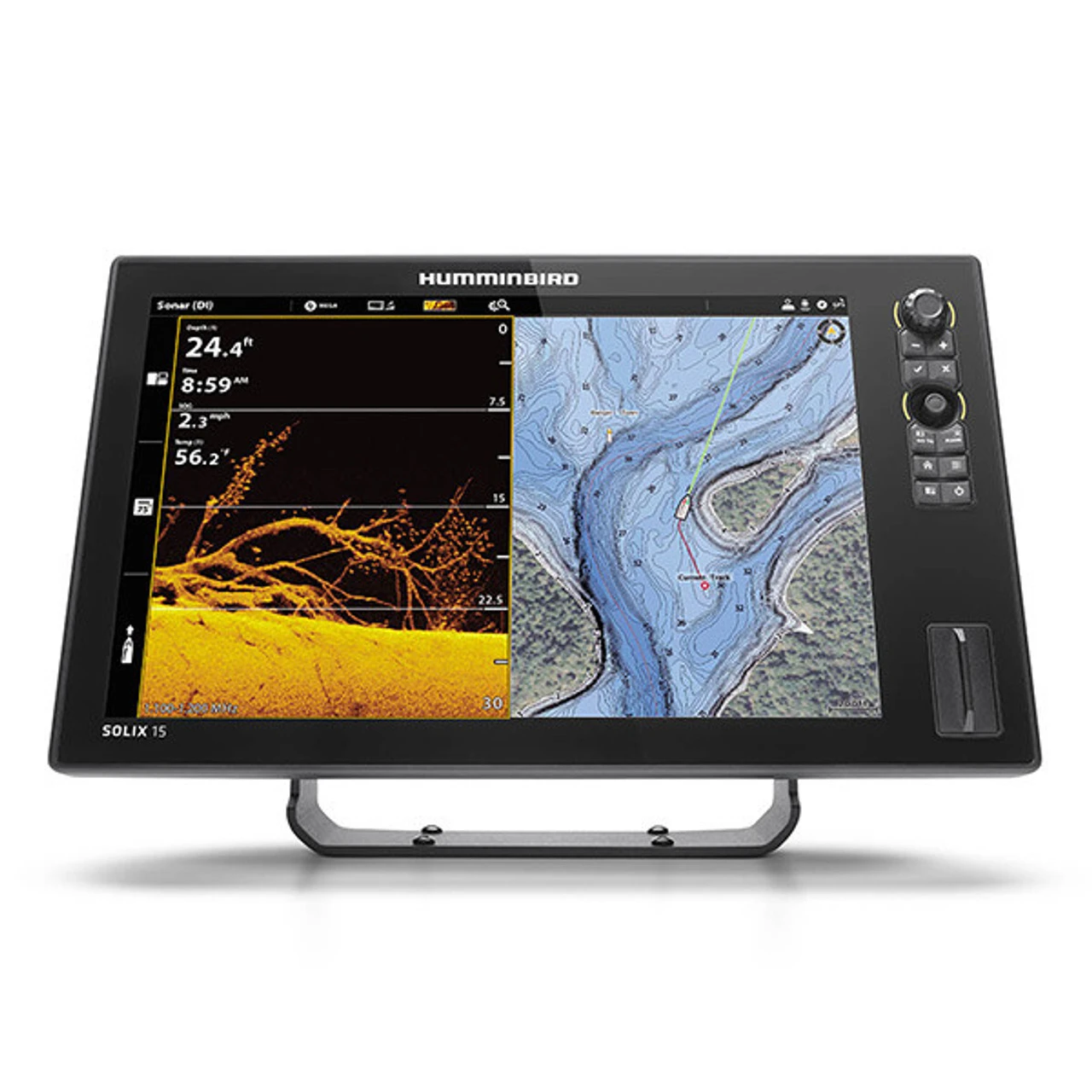

The SOLIX 15 CHIRP MSI+ G3 CHO combines cutting-edge technologies like MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and AutoChart Live on an ultra-clear Cross Touch® display. Take full advantage of the generous 15.4″ touchscreen display with customizable views and settings that allow you to see multiple technologies at once and find what you want quickly via the convenient side bar menu. Leverage the networking power of built-in Wi-Fi and NMEA 2000® connectivity, as well as Bluetooth® and Ethernet connections for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon. This CHO (Control Head Only) model is the perfect pairing for those anglers looking to select their own transducer or pair this model with MEGA 360 Imaging or a Built-in MEGA Imaging trolling motor from Minn Kota®.

Features:

Control Head Only Model: This model does not include a transducer. This CHO model is a great choice for those looking to connect to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network.

Cross Touch® Interface: Control your fish finder using the touchscreen or the keypad—it’s up to you. Any menu navigation you can do on the touchscreen can also be done on the keypad, providing quick and intuitive access to technologies on your terms, no matter your situation and conditions.

Customized Experience: Utilize an intuitive user interface and sidebar menu which provide customizable settings and view combinations to make your fishing experience all your own.

NEW Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.

Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250′ under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Airmar® Transducer ID: For those looking to install accessory 2D Airmar transducers, SOLIX G3 provides transducer ID to make for fast and simple setup.

Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird’s LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.

One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.

NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Compatible with CZone® Contact 6, Contact 6 Plus and digital switching devices

Includes control head, screen cover, power cable and gimbal mounting bracket (optional RAM mount not included). This CHO model does not include a transducer, allowing you to pick the best fit for your rigging needs. Product comes with 2-Year Limited Warranty.

Item Number	411570-1CHO
Series	SOLIX
Display Size – Diagonal	15.4″
Display Pixel Matrix	1280H x 800V
Sonar-Standard	Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
Sonar-Coverage	20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
Sonar-Optional	50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
CHIRP – Frequencies Supported	Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported	50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
Depth-Sonar	3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer)
CHIRP – Imaging-Frequencies Supported	MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz)
Depth-Down Imaging	200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)
Range-Side Imaging (Side-To-Side)	800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
Interface	Touch Screen
Features	Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi
Memory Card Slot	Dual SD
Compatible With	Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network
Power Draw	2.8 Amps
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	16.53″ W x 10.46″ H x 4.83″ D
Mount-Optional Size	16.53″ W x 10.05″ H x 1.2″ D
Transducer Mount Location	N/A
GPS Chartplotting	Included
GPS Trackplotting	Included
LakeMaster Compatibility	Yes
Coast Master Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum + Compatibility	Yes
Platinum Compatibility	Yes
Heading Sensor GPS Compatibility	Yes
Upgradable Software	Yes
View Preset Keys	No
X-Press Menu System	No
Custom Digital Readout	Yes
Custom View Selections	Yes
Display Colors Grayscale	16-Bit
Display Size	11″ – 15″
Speed	Included
Temperature	Built In
Temperature Alarm	Yes
Temperature Graph	Yes
Transducer Included	NONE
